DVXtract
DVXtract is a Windows utility for analysing Emerson DeltaV FHX
export files. It provides a structured view of the objects in an
FHX file and allows selected objects and their dependencies to be
extracted into a new FHX file.
Key Features
- Analyse DeltaV FHX export files without modifying the source file.
- Browse FHX objects in a structured tree view.
- Display recognised DeltaV object types using familiar names.
- Select individual objects or complete object groups.
- Search for objects using text and wildcard expressions.
-
Automatically select referenced dependencies, including
Function Block Definitions, Module Classes, Phase Classes
and Recipes.
- Export selected objects to a new FHX file.
- Operate completely offline.
Designed for DeltaV Engineering
Large DeltaV FHX exports can contain thousands of objects.
Finding and extracting a particular set of modules, classes,
recipes or other configuration objects manually can be
time-consuming and error-prone.

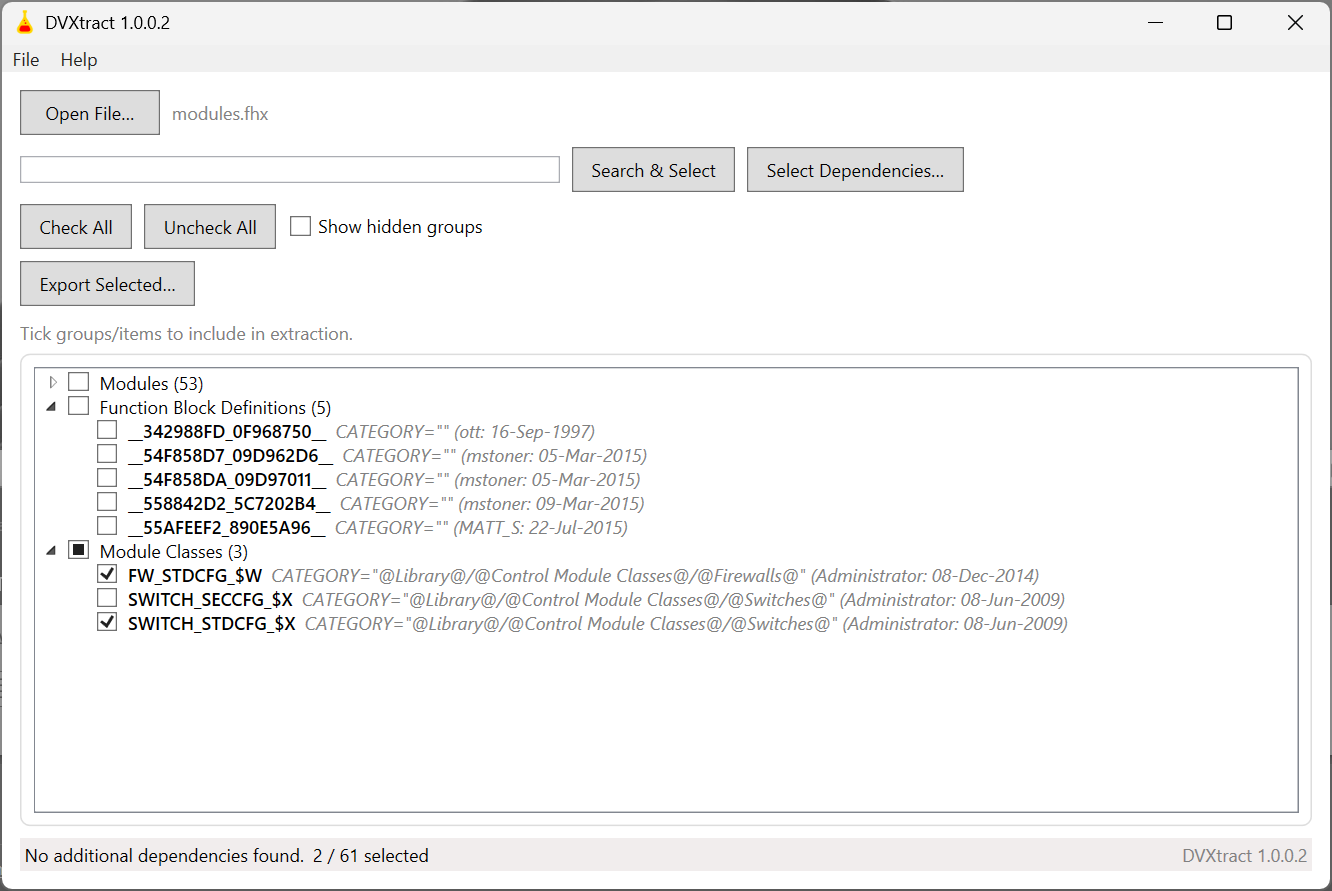

DVXtract simplifies this process by presenting the objects in
a structured tree. Objects can be selected directly or found
using wildcard searches. Referenced objects can then be added
automatically before the selection is exported to a new FHX file.
Portable Windows Application
DVXtract does not require installation. Download the ZIP file,
extract all files to a folder of your choice and run
DVXtract.exe.
| Operating system |
Windows 10 or Windows 11, 64-bit |
| Installation |
None – portable application |
| .NET Runtime |
Included |
| DeltaV installation |
Not required |
| Internet connection |
Not required for normal operation or licence validation |
Licensing
DVXtract is commercially licensed on a per-user basis.
A standard licence is valid for one year and includes a
seven-day grace period following expiry.
| Annual licence |
€99 per user |
| Licence period |
1 year |
| Machine binding |
None |
| Licence validation |
Offline |
Prices are inclusive of VAT where applicable.
A licence is assigned to an individual user but is not tied
to a specific computer. The licensed user may therefore use
DVXtract on multiple computers, subject to the applicable
licence terms.
To purchase a licence or obtain further information, contact
info@batch-a.com
.
Engineering responsibility
DVXtract operates on exported FHX files and does not connect
directly to or modify a running DeltaV system. Output generated
by DVXtract should always be reviewed and validated before being
imported into an engineering, test, validation or production
environment.
Independent Product
DVXtract is developed by Mavabe Technical Consultancy B.V.,
trading as Batch-A. It is an independent product and is not
affiliated with, endorsed by, or supported by Emerson Electric
Co. or its affiliates.
DeltaV and other product names are trademarks or registered
trademarks of their respective owners.
